Schwinn Indoor Cycling

Schwinn Pedals (Dual-Sided SPD & Toe Cage, 9/16″ Threaded) for Indoor Bikes | 000-0011

Name: Schwinn Pedals (Dual-Sided SPD & Toe Cage, 9/16″ Threaded) for Indoor Bikes | 000-0011
Brand: Schwinn Indoor Cycling
Price: 99.95 USD
Availability: InStock

~~$215.68~~ $99.95 Save 54%

Product variants

WHY BUY FROM INDOOR CYCLE PROS?

✓Official Stages Distributor for U.S. Studios
✓No One Knows Stages Better: 4,000 Bikes Sold

Quantity

Chat with the Pros 24/7

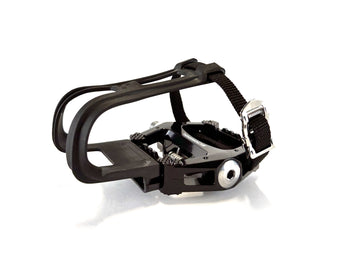

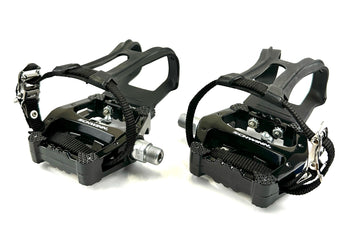

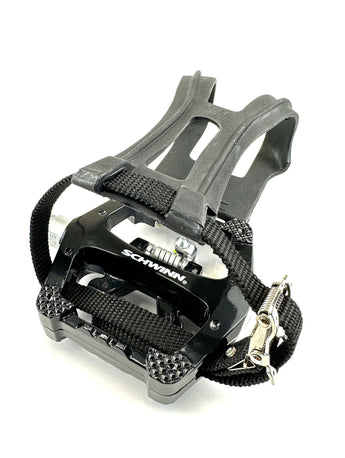

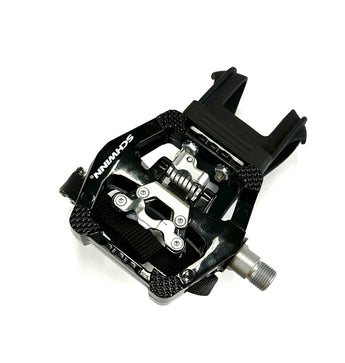

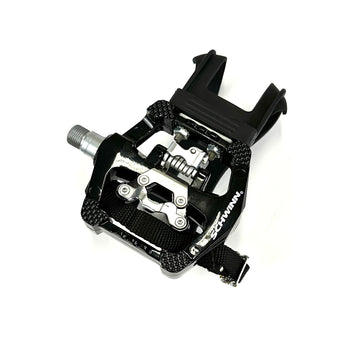

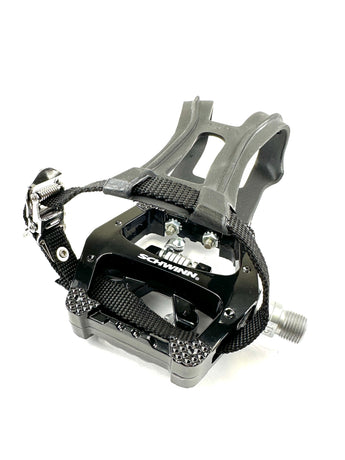

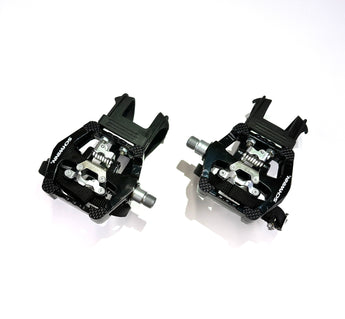

The Schwinn Dual Function SPD & Toe Cage Pedal Set – 9/16″ Threaded gives riders the flexibility to use SPD-compatible cycling shoes or standard athletic shoes on the same indoor cycle. Designed for commercial indoor cycling environments, this dual-function pedal combines an SPD clip-in system with an adjustable toe cage and strap.

Important: This is the 9/16″ threaded version for compatible indoor cycles with standard threaded crank arms. It is not the Schwinn Morse Taper pedal. If you are unsure which pedal connection your Schwinn bike uses, contact Indoor Cycle Pros before ordering.

Schwinn Dual Function SPD & Toe Cage Pedal

This Schwinn pedal design provides two footwear options for indoor cycling:

SPD clip-in: Designed for cycling shoes equipped with compatible SPD cleats.
Toe cage: Allows riders to use standard athletic shoes secured by the adjustable cage and strap.

The dual-function design is especially useful in commercial indoor cycling studios, fitness clubs, recreation centers, universities, and other facilities where bikes are shared by riders with different footwear preferences and experience levels.

9/16″ Threaded Pedal Connection

This pedal set uses a 9/16″ threaded axle and is intended for compatible indoor cycling bikes equipped with standard 9/16″ threaded crank arms.

Pedal mounting systems can vary by bike model and crank configuration. Confirm that your bike uses a 9/16″ threaded pedal connection before ordering.

Threaded vs. Schwinn Morse Taper Pedals

Schwinn commercial indoor cycles have used different pedal and crank attachment systems. A standard threaded pedal and a Morse Taper pedal are not interchangeable.

Need the Schwinn Morse Taper version? View the Schwinn Morse Taper Dual Function SPD & Toe Cage Pedal Set – 740-8690.

If you are uncertain which version fits your bike, contact Indoor Cycle Pros and we can help you identify the correct pedal before you order.

Built for Commercial Indoor Cycling

Indoor cycling pedals in commercial facilities are exposed to repeated classes, frequent rider changes, and demanding daily use. This Schwinn dual-function pedal provides the versatility needed in shared-use environments while allowing both experienced SPD riders and participants wearing standard athletic shoes to use the same bike.

Key Features

Dual-function SPD and toe cage design
SPD-compatible clip-in pedal system
Integrated toe cage with adjustable strap
9/16″ threaded axle
Designed for compatible threaded crank arms
Suitable for commercial indoor cycling applications
Pedals sold as a set

SPD Clip-In Performance

The SPD side provides a secure connection for riders using compatible clip-in cycling shoes. Clipping into the pedal can help maintain consistent foot positioning during climbs, sprints, intervals, and other high-intensity indoor cycling movements.

Toe Cage Versatility

The integrated toe cage allows riders to participate without dedicated cycling shoes. Standard athletic shoes can be positioned inside the cage and secured with the adjustable strap, making the bike accessible to a wider range of riders.

For studios and fitness facilities, having both footwear options on one pedal can simplify bike setup and accommodate riders with different preferences within the same class.

Need Help Finding the Right Schwinn Pedal?

Choosing between a 9/16″ threaded pedal and a Schwinn Morse Taper pedal is important because the two mounting systems are different.

If you are not sure which pedal your Schwinn indoor cycle requires, contact Indoor Cycle Pros before ordering. We specialize in commercial indoor cycling bikes, replacement parts, and service, and can help you identify the correct component for your bike.

Questions about compatibility? Email us at sales@indoorcyclepros.com.

FAQs

Who is Indoor Cycle Pros and what do you specialize in?

Indoor Cycle Pros is the Official Stages Cycling Distributor for U.S. Studios, supplying Stages SC2 and SC3 commercial indoor bikes. We specialize in helping boutique studios and gyms source and maintain their bikes with expert phone support and prompt access to Stages parts.

Do you ship Stages bikes and parts internationally or just in the U.S.?

Indoor Cycle Pros ships new Stages bikes nationwide across the United States, and delivers Stages parts and accessories to clients worldwide.

Why does Indoor Cycle Pros only sell Stages Cycling bikes?

We exclusively carry Stages Cycling indoor bikes because Stages is the only fitness brand 100% focused on commercial indoor cycling. Unlike other manufacturers that produce treadmills, rowers, and ellipticals, Stages builds only indoor cycles—resulting in the most advanced and durable bikes on the market for studio use.

Is Stages Cycling out of business?

Absolutely not! Stages Cycling is thriving under the ownership of Giant Manufacturing Co., the world's largest bicycle manufacturer, established in 1972.

Do you offer ongoing support for Stages indoor bikes after purchase?

Yes, we provide ongoing support for Stages indoor bikes, including maintenance tips, troubleshooting help, and help finding the right replacement parts. Call (949) 922-7302 for expert phone support. Installation instructions and videos are available on request at sales@indoorcyclepros.com.

Do you offer financing on your Stages indoor bikes?

Yes, our finance team has supported studios and gyms since 2015 with the most competitive options for financing Stages bikes. To get started, fill out our Contact Form.

What’s the difference between the Stages SC2 and Stages SC3 indoor bikes?

Both the Stages SC2 and Stages SC3 bikes share a commercial-grade frame but differ in rider features. SC2 is ideal for rhythm riders; SC3 for performance tracking and metrics.

SC2 Highlight: Black pop-pin adjustment knobs, RhythmBar™ handlebars, no console.
SC3 Highlight: Blue FitLoc™ levers, RoadBar™ handlebars, EcoSCRN console, and built-in power meter.

What pedal comes with a Stages bike?

Each Stages bike includes a dual function pedal that offers both SPD cleat compatibility on one side and a toe cage with an adjustable strap for standard athletic shoes.

Can I add a Stages Display Console to a Stages SC2 indoor cycle?

No, the Stages Display Console is only compatible with the Stages SC3, which contains the required internal generator. The Stages SC2 does not support console connectivity.

Can I upgrade the height adjustment Stages FitLoc Lever on my Stages bikes to the Stages Pop-Pin with Knob?

Yes, you can upgrade your Stages FitLoc Lever to the Stages Pop-Pin with Knob! You will need a 2mm Allen, a 2.5mm Allen, and a 3mm ball-end Allen wrench.

How do I replace a Stages Power Meter?

To replace your Stages Power Meter Crank Arm (which includes the entire left crank arm with integrated power meter), follow the step-by-step instructions below using the proper tools and supplies.

🔧 Tools & Supplies Needed

8mm Allen wrench or 8mm Allen socket with ratchet drive (recommended)
Park Tool HPG-1 High Performance Grease
Park Tool PW-4 Professional Pedal Wrench (or equivalent)
Loctite 243 (blue threadlocker)
TitanFlex heavy-duty nitrile gloves (or equivalent)

🛠️ Step-by-Step Instructions

Wear Gloves
Put on nitrile gloves to keep grease and threadlocker off your skin.
Remove the Pedal
Use a pedal wrench to remove the pedal from the existing crank arm.
- Left pedal = reverse-threaded (turn clockwise to loosen)
Remove the Existing Crank Arm
Use an 8mm Allen wrench or socket with ratchet to turn the crank bolt counter-clockwise.
- This is a self-extracting bolt — it will loosen and automatically remove the crank arm.
Clean the Spindle
Wipe the bottom bracket spindle's splines and internal threads clean using a dry cloth.
Apply Grease and Threadlocker
Apply a thin coat of Park Tool HPG-1 grease to the spindle splines and a small drop of Loctite 243 to the internal threads of the spindle.
Install the New Stages Power Meter Crank Arm
Slide the new crank arm onto the spindle so it is 180° opposite the right crank arm.
Tighten the Crank Bolt
Thread the crank bolt in by hand, then firmly tighten with your 8mm wrench or ratchet.
Reinstall the Pedal
Thread the pedal back into the new crank arm.
- Left pedal = reverse-threaded (turn counter-clockwise to tighten)
Final Check
Ensure both crank arms are 180° apart, the crank spins smoothly, and all bolts are secure.

What is the best way to clean my Stages bikes?

For the Stages bike frame, use a diluted solution of Simple Green at a ratio of 1:30 (1 part Simple Green to 30 parts water). Spray onto a microfiber cloth and wipe the entire frame including crank covers. Dry with a clean microfiber cloth.

What tools do I need to maintain a Stages indoor bike?

Stages indoor bikes use only metric tools. Never use fractional tools. For a complete tool guide, email us at sales@indoorcyclepros.com and we’ll provide access to our Stages Bike Tool Kit.

How do I adjust the saddle angle on my Stages indoor bike?

Use a 13mm open end wrench or 13mm socket with ratchet to loosen each side of the saddle clamp, make your adjustment, then re-tighten evenly. Check out our Stages saddles collection.

How do I replace the batteries in my Stages Power Meter?

Use a quality #0 Phillips screwdriver to remove the tiny screws on the battery cover of your Stages Power Meter. Replace the AA batteries, ensuring the correct +/− orientation. For a tighter fit, wrap a layer of electrical tape around each battery.

How do I know if my Stages Power Meter needs to be replaced?

Find the 5-digit ANT ID on your Stages Power Meter. While pedaling, open the StagesPower app and check for a matching device. If no connection occurs, press the reset button for 3 seconds, try again, and replace AA batteries if needed.

Do you offer studio design and buildout services?

Yes! Our design and buildout team can help bring your studio vision to life. Fill out our Contact Form and we’ll reach out to get started.
